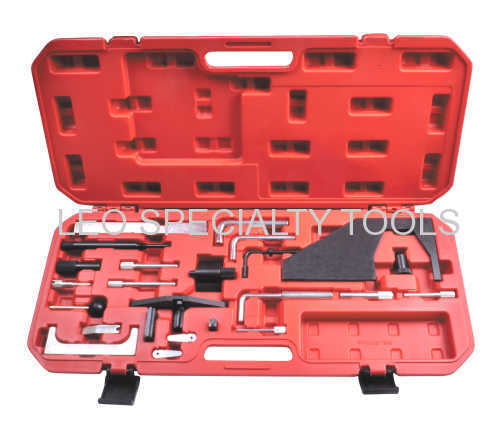

Description:

Enables the correct engine timing to be made when replacing the timing belt.

Petrol engines:
Zetec SE (Fiesta since 1996, Focus since 1998

)
All 1.25 / 2.0 Engines 1995-1998
All 1.6 16V / 1.8 16V / 2.0 16V Engines 1991-1998
Diesel engines:
All 1.6 / 1.8 / 1.9 Engines since 1997
All 1.8 D/TD/TDCi Engines

Not suitable for 1.6 Ti-VCT Engines

Models:

• Ford Fiesta/Van (1984-2002)

• Ford Fiesta (1995-2008)

• Ford Escort/Orion (1984-1999)

• Ford Sierra (1990-1993)

• Ford P100 (1989-1994)

• Ford Courier/Kombi (1989-2002)

• Ford Fusion (2002-2008)

• Ford Focus (1998-2008)

• Ford Focus C-Max (2003-2008)

• Ford Mondeo (1993-2008)

• Ford Cougar (1998-2001)

• Ford S-Max (2006-2008)

• Ford Galaxy (1995-2000)

• Ford Galaxy (2006-2008)

• Ford Courier (1995-2008)

• Ford Transit (1994-2000)

• Ford Tourneo Connect (2002-2008)

• Ford Transit Connect (2002-2008)

• Mazda 121 (1995-2000)

• Mazda 2 (2002-2007)

• Mazda 3 (2003-2006)

• Mazda 6 (2002-2007)

• Mazda Tribute (2001-2004)

• Volvo S40/V50 (2004-2008)

Engine Codes:

• Ford 1.25 16V (Belt): DHA, DHB DHC, DHE, DHD DHF, DHG F8JA, F8JB FUJA, FUJB M7JA, M7JB

• Ford 1.4 16V (Belt): ASDA, ASDB, FHA, FHD FHE, FHF FXDA/C FXDB/D FXJA, FXJB

• Ford 1.6 16V (Belt): FYDA/C, FYDB/D FYJA, FYJB, L1F L1J, L1L, L1N L1Q, L1T, L1V L1W, HWDAHWDB

• Ford 1.7 16V (Belt): MHA, MHB

• Ford 1.8 16V (Belt): EYDB, EYDC EYDD, EYDE EYDF, EYDG EYDI, EYDJ EYPA, EYPC RKA, RKB RKF, RKH,RKJ, RKK

• Ford 1.8 16V (Chain): CDBB, CGBA/B,CHBA/B, CSDA,CSDB, QQDA, QQDB, QQDC

• Ford 2.0 16V (Belt): EDBA/C, EDBB EDBD, EDDB EDDC, EDDD EDDF, NGA, NGB, NGC NGD

• Ford 2.0 RS/ST170 (Belt): ALDA, HMDA

• Ford 2.0 16V (Chain): AODA, AODB,AOWA, CJBA/B

• Ford 1.4 TDCi: F6JA, F6JB, F6JC

• Ford 1.6 D: LTA, LTB, LTC

• Ford 1.6 TDCi: HHJA, HHJB, G8DA, G8DA, HHDA, HHDB

• Ford 1.8 D/TD: RTA, RTB, RTC, RTD, RTE, RTF, RTG, RTH, RTJ, RTK, RVA, RFA, RFM, RFN

• Ford 1.8 D Turbo: RTN, RTQ, RTP, C9DC

• Ford 1.8 TDdi: BHDA/B, BHPA, C9DA/B, C9DC

• Ford 1.8 TDCi: F9DA/B, FFBA, FFDA, HCPA, HCPB, KKDA, P7PA, P9PA, QYWA, R2PA, R3PA, RWPA

• Ford 1.9 D: IZ, AFN, AHN, AVG

• Ford 1.9 TDi: 1Z, AFN, AHU, AVG

• Ford 2.0 TDCi: G6DA, AZWA, G6DB, QXWA, G6DC

• Ford 2.5D/T/TCi: 4FA, 4FB, 4FC, 4FD, 4HB, 4HC, 4EB, 4EC, 4GA, 4GB, 4GC, 4GD, 4GE, 4GF, 4HA, 4HD, 4ED

• Mazda 1.25 16V: DHA, FUJA, FUJB

• Mazda 1.4 16V: FXJA, FXJB

• Mazda 1.6 16V: FYJA

• Mazda 1.8 16V: L8

• Mazda 2.0 16V: LF, YF

• Mazda 2.3 16V: L3

• Volvo: B4164S3
