Description:

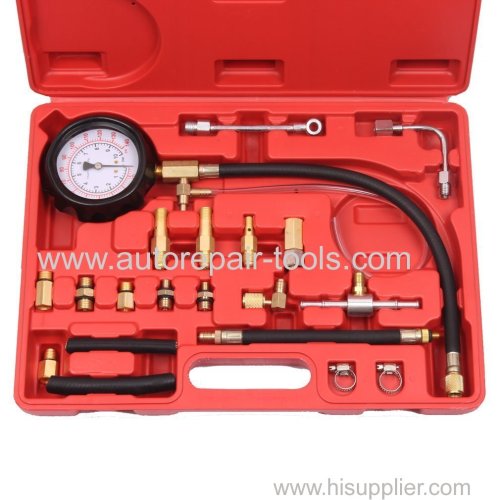

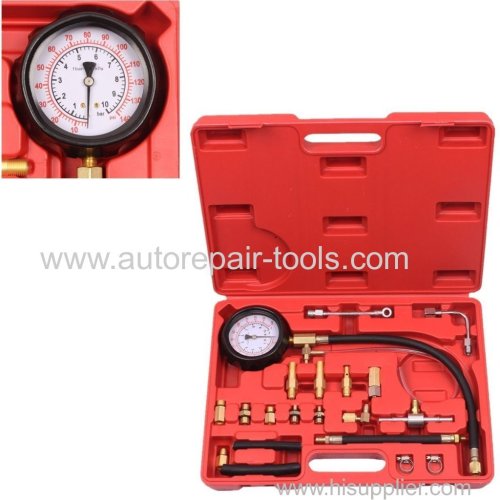

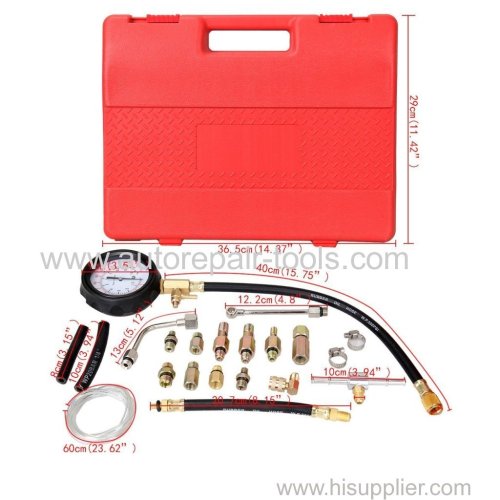

Comprehensive kit of adaptors and fittings for modern Schrader test port fuel injection systems.
Components fitted with quick coupling system and safety valve to prevent inadvertent discharge of fuel under pressure.

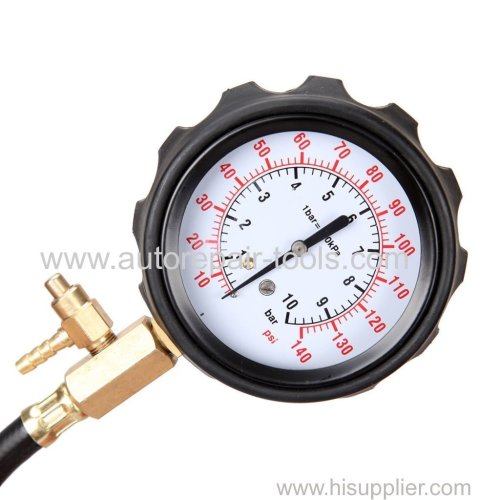

High pressure, dual scale gauge reading 0-145psi;
Pressure release valve with drain hose for safe fuel recovery.
To use it on petrol engines you will have to use either the t-piece after the fuel filter or find a cap in the fuel that one of the adapters will fit.
For use with both petrol and diesel (comes with the bigger Schrader valve for diesel but not petrol).

Function:

This tester determines if the fuel pressure regulator needs adjusting or replacing. It will allow the mechanic to adjust it to the correct pressure if it is adjustable. It will also tell if other components are bad, such as the fuel pump, filter, etc.

Applications:

• American Motors

• Chrysler Corp.

• Bosch AFC, MPC European & Japanese (except CIS)

• Ford Motor Co.

• GM (except TBI)

• Japanese fuel injection systems

• Others using Bendix-type fuel injection or a Schrader-type valve, including the small Schrader valve found on both TBI and Multi-Port Fuel Injection systems found on Ford products.

• Dual scale 2 1/2" gauge 100 PSI and 7 Bar
