Vacuum Tester & Brake Bleeding Kit

Description:

Multi-function diagnostic tool used to test a variety of essential engine and associated functions including fuel, ignition, transmission and emissions.

Kit also includes reservoir, hoses and adaptors for bleeding brake and clutch systems on cars, commercials and motorcycles.

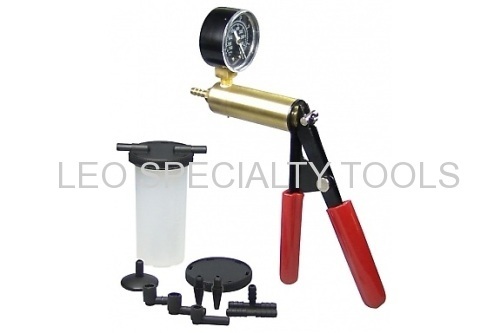

Brass-bodied vacuum pump features large, easy-to-read vacuum gauge calibrated in both inches and millimetres of mercury.

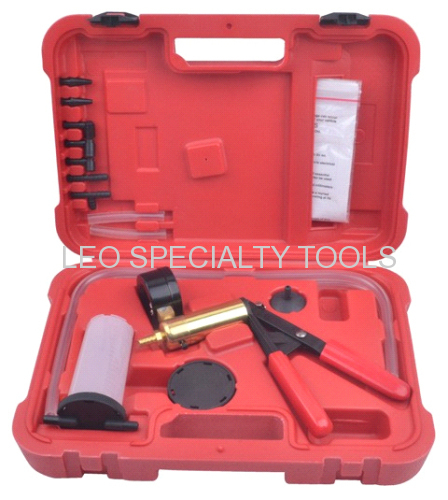

Contents:

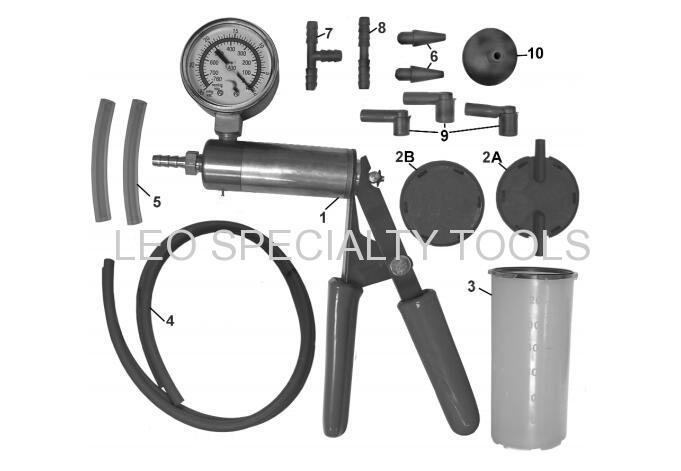

Vacuum Pump, Fluid Container, Transfer Cap, Vacuum Hoses; 2 x 580mm, 2 x 80mm, 5 x Assorted Vacuum Hose Fittings, 3 x Bleed Nipple Adaptors

Application:

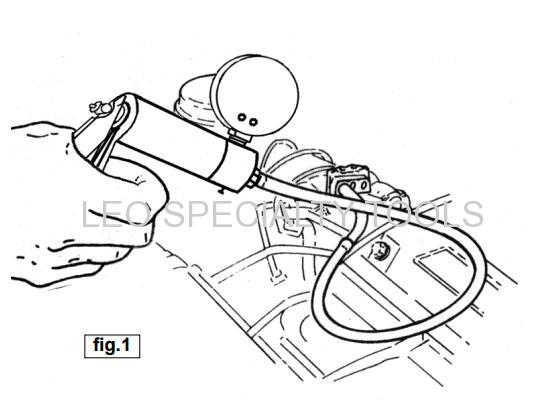

Analysing Engine Mechanical Condition via Manifold Vacuum Readings (fig.1).

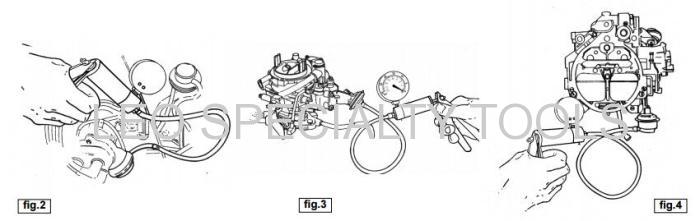

Ignition System Vacuum Advance  (fig.2).

Testing Carburettors (fig.3,4).

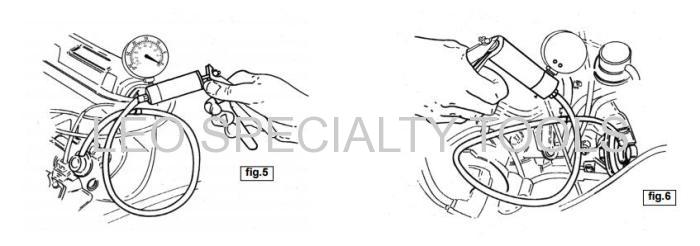

Testing Fuel Injection Pressure Regulator  (fig.5).

Testing Emission Control Exhaust Gas Reclrculation Valves (EGR) (fig.6).

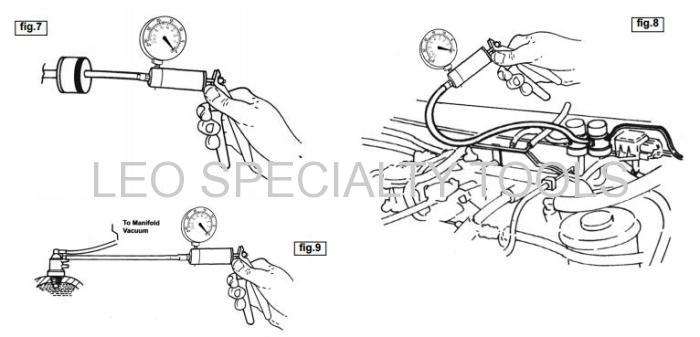

Testing One-Way Valves  (fig.7).

Testing Electrically Operated Vacuum Solenoids (fig.8).

Testing Thermal Vacuum Switches  (fig.9).

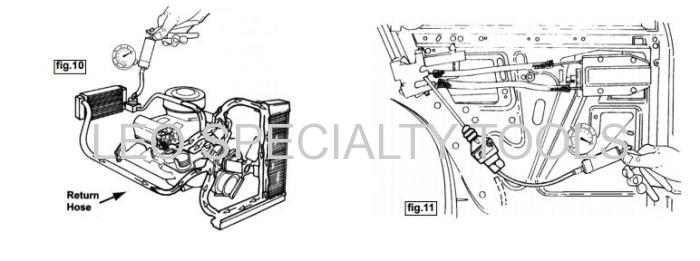

Testing Vacuum Operated Heater Taps  (fig.10).

Testing Vacuum Operated Remote Central Locking Systems  (fig.11).

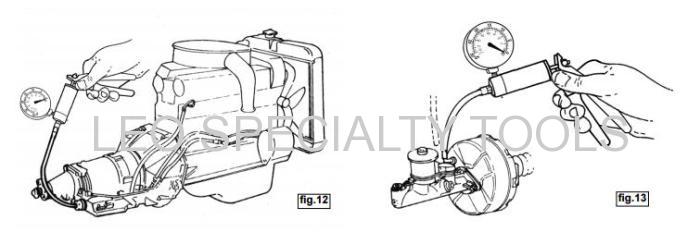

Testing Automatic Transmission Vacuum Operated Modulator Valves  (fig.12).

Testing Brake Servo Diaphragm  (fig.13).

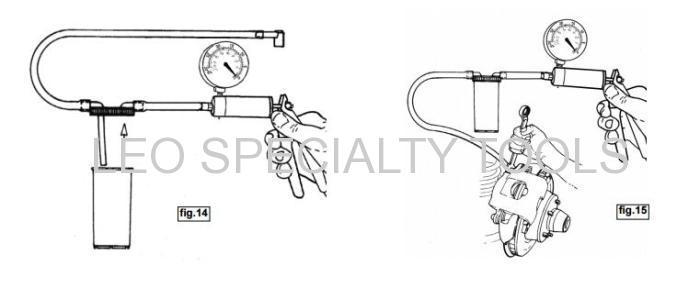

Brake Bleeding - Assembly of Brake Bleeder Kit  (fig.14,15).
