24pc press&pull sleeve kit

Min. Order:100 Set/Sets
Trade Term:FOB
Payment Terms:L/C, WU, T/T, Paypal
Place of Origin:Zhejiang China(Mainland)
Means of Transport:Land, Ocean, Air
Production Capacity:5000 Sets Per Month
Packing:Blow Box
Delivery Date:30 DaysModel No::LT6242
Color:Red/Blue/BlackPort:Ningbo/Shanghai
Pricing Term:FOBDelivery Time:30 Days
Payment Term:L/C,T/T,PaypalTransport:Sea,Air,Land

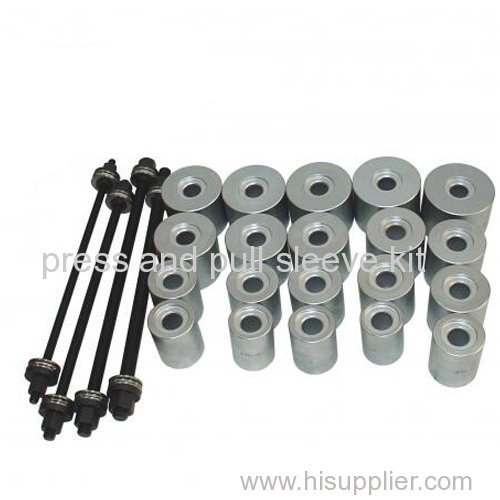

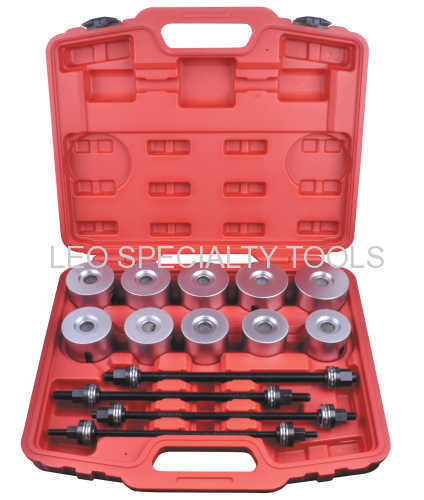

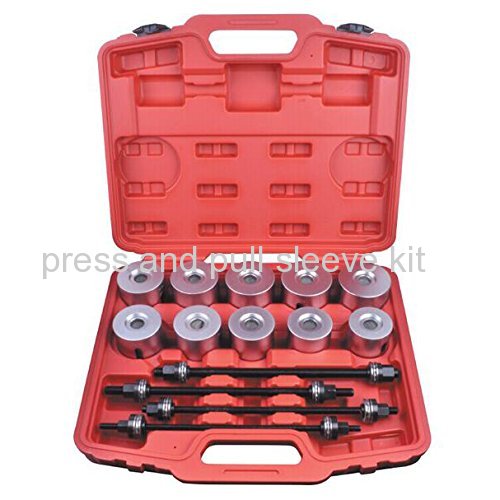

24pc press and pull sleeve kit


Description:

The 24Pieces of Press and Pull Sleeve Kit is designed for removal and installation of all types of bearings, bushes and seals. It is designed to remove and install bearings including Silent Bearings, Hydraulic Bearings, Bearing Bushes, Ball Bearings, Shaft Seals, Rubber Bearings and many more. It is crafted to remove bushes, bearing or seals without the need of a press and to reduce the possibility of damaging the bearings/suspension housings.

Tool Press and Pull Sleeve Kit can also be used with a workshop press if required. It kit contains a unique design with U-Plot on each sleeve for operator to easy visual inspect removal and installation. The spindles have thrust bearings fitted to both ends making the extracting and installing much easier. The end caps are also double sided making them a universal fit for the sleeves

Fully universal application and suitable for domestic or import vehicles: passenger cars or light trucks. Hardened and tempered for maximum durability. Moulded case for easy transportation.

Contents:

?         20 x Press Sleeves.

?         Inside diameter range: 34 - 72mm.

?         Outside diameter range: 44 - 82mm.

?         4 x pulling spindles with thrust bearings

Specifications:

This tool kit set comes compelete with 20 Press Sleeves and 4 x Pulling spindles with thrust bearings, 24 pieces in total.

Sleeve Wall Thickness: 5mm

Force Screw Length: 450mm

Inside Diameter from 34 - 72mm in 2mm steps:

34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72mm..

Outside Diameter from 44 - 82mm in 2mm steps:

44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82mm.

4 x Pulling spindles with thrust bearings:M10, M12, M14, M16

Features:

Hardened and tempered for maximum durability.

Reduces the possibility of damaging the bearing/suspension housings.

Supplied with four stepped end plates and four force screws in carry-case.

Blow moulded plastic case keeps all the tools organized and easy to transport.

Packing details:

QTY(SET)

G.W.(KGS)

N.W.(KGS)

MEAS(CM)

1

16

15

47*42*12
