| Min. Order: | 100 Set/Sets |
|---|---|
| Trade Term: | FOB |
| Payment Terms: | L/C, WU, T/T, Paypal |
| Place of Origin: | Zhejiang China(Mainland) |
| Means of Transport: | Ocean,Land,Air |
| Production Capacity: | 5000 Sets Per Month |
| Packing: | Blow Box |
| Delivery Date: | 30 Days | Model No:: | LT6255 |
|---|---|---|---|
| Color: | Red/Blue/Black | Port: | Ningbo/Shanghai |
| Pricing Term: | FOB | Delivery Time: | 30 Days |
| Payment Term: | L/C,T/T,Paypal | Transport: | Sea,Air,Land |
Description:

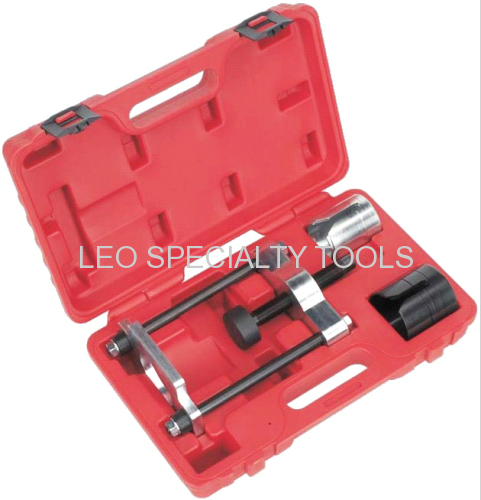

This tool is designed to aid removal of the suspension bush.
Can be used in situ - no need to remove sub-frame from vehicle.
Application:
Ford; Focus MK1 1998-2004
Operation:

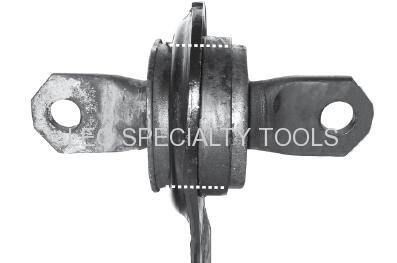

Bush before removal from trailing arm.

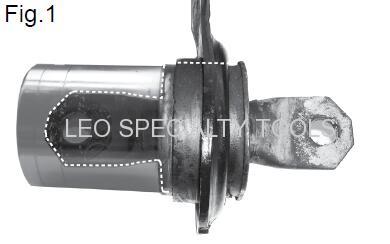

2. Attach the silver removal press as in Fig.1.Note the inner
shoulder of the press fits inside the outer body of the bush.

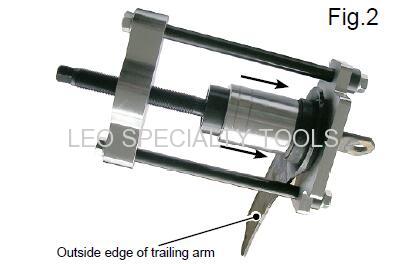

3. Assemble as in Fig.2.

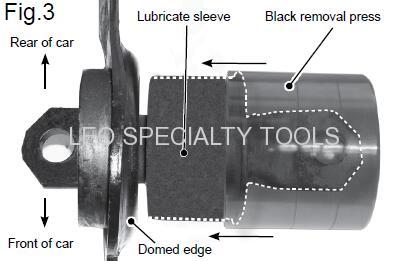

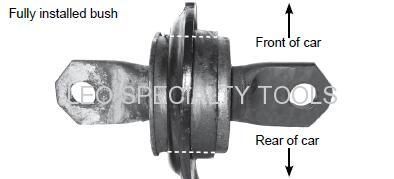

4. Fitting new bush. (Fig.3).

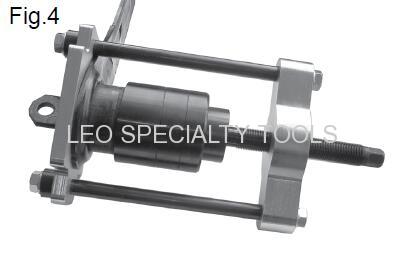

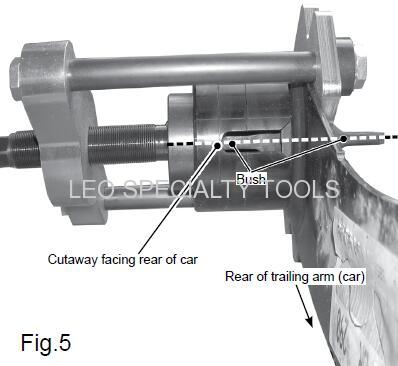

5. Assemble the press on the trailing arm as below (Fig.4,5).
6. Wind the force screw clockwise.
7. Remove the tool, clean and lubricate before returning to storage
case.
Packing details:
QTY(SET) | G.W.(KGS) | N.W.(KGS) | MEAS(CM) |
4 | 16 | 15 | 39*34*26 |
